Rigol DS2102A (Oscilloscope)

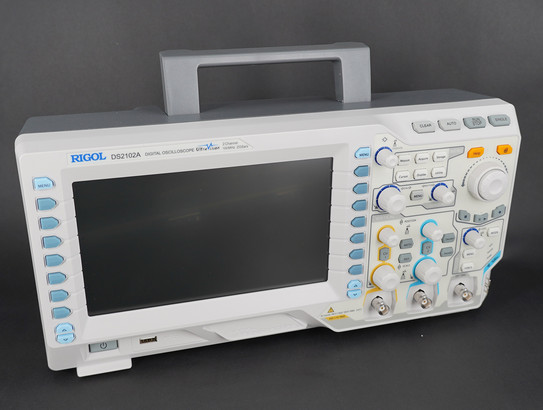

Osziloskop in Nahaufnahme auf dunklem Untergrund

Technical details:

Digital storage oscilloscope with 2 input channels and a bandwidth of 100 MHz.
The large memory with 14 Mpts (megapoints) and the sampling rate of 2GS/s (gigasamples per second) enable precise signal displays.
The 20.3 cm TFT color display allows good differentiation of the individual measurement channels and the display of many parameters.
LAN, USB and RS232 interface
Various mathematical functions
PictBridge printer support
Here you can find the operating instructions from the manufacturer.

Further information and devices can be found on the higher-level page on measuring devices.
